應用:解決大空間供暖需求
特點:精確調節燃?xì)馀c自然空氣的配比,最大限度地利用無線智能控制。多重安全防護,精準節能,安裝成本低,安全可靠。

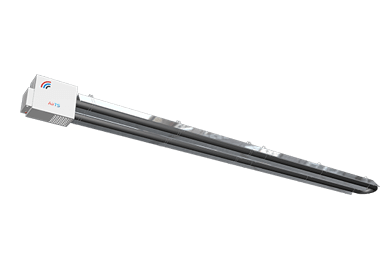

型號: AirTS-G
功能:加熱
熱源或介質:天然氣
控制方式:無線控制、變頻、自動監控

質量保證
穩定耐用

售后服務
7*24小時
工作原理

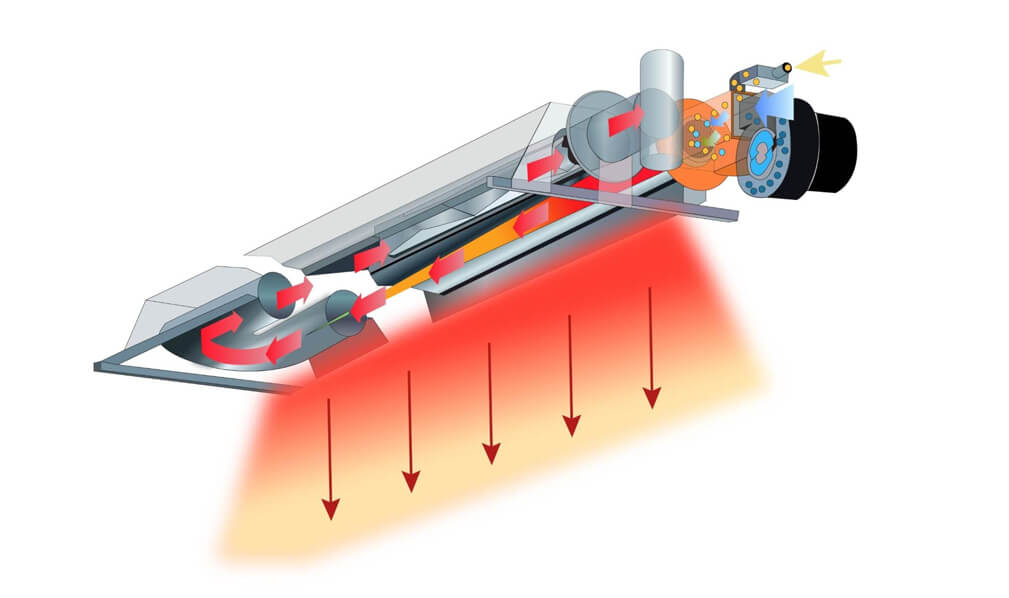

燃?xì)饧t外輻射加熱的原理步驟:
燃?xì)饧t外輻射加熱系統采用氣體和空氣的混合物在散熱器中燃燒。
當太陽照射時,熱量通過紅外輻射輻射到物體表面。
一些紅外線以熱量的形式被吸收到物體中,部分紅外線被二次輻射反射。
被照射物體吸收的熱量被傳遞到周圍的空氣或其他物體上。

功能
節省投資
方便靈活的布局
U型輻射管
直線型輻射管
燃?xì)饬靠勺?/p>
易于安裝
空氣分層
無線控制
技術特點
Easy for installation
? Fuel gas or liquefied gas can be used without boiler and operation and maintenance personnel.
Saving investment
? The gas-fired infrared radiant heating system omits the complex system of traditional heating method, such as heat exchange station, which greatly saves the initial investment.
No dust
? It adopts the mode of gas-fired infrared radiant heating to avoid indoor air convection and dust, which is good for maintaining a good environment.
Convenient and flexible layout
? It takes up small space and is less affected by space restriction. It can be installed in the specified position according to requirements, such as station local heating.
Switch on it while using
? It can be intermittent heating, and can be switched on when you need it, without heating all the air in the space.
Air stratification
? Infrared radiation travels through the air and directly heats the irradiated object, with a small process loss.
The enclosed structure has low insulation requirements
? In poor insulation environments such as: long-term open door, open air, the people can still feel the warmth of sunlight even when the wind is cold.
Safety and environmental protection
? Various safety detection methods, the use of worry-free. Full combustion, ultra-low tail gas nitrogen oxide emission, energy saving and environment protection.
技術參數

| 燃?xì)鉄彷椛?變氣量)供熱機組 | ||
| 型號 | AirTS-G | |
| 輸出熱量 | kW | 5.47~54.75 |
| 運行方式 | 正壓運行 | |
| 燃?xì)夥N類 | 天然氣 (CNG/LNG) | |
| 最大耗氣量 | m3/h | 5.4 |
| 供氣壓力 | Kpa | 5~10 |
| 工作壓力 | Kpa | 2 |
| 電源 | 單項交流電 220V50HZ | |
| 氣密性 | l/h | ≤ 0.006 |
| 風機噪音水平 | dB | ≤ 35 |
| 尾氣CO排放指標 | ≤ 0.001% | |
| 尺寸 | ||
| 型號 | AirTS-G | |
| 直線型標準長度 | m | 18.5 |
| U型標準長度 | m | 10 |
| 管徑 | mm | 102 |
| 兩管連接彎頭尺寸(長*寬) | mm | 400×500 |
| 輻射管罩尺寸(寬*高) | mm | 330×170 |
| 燃燒機頭尺寸(長*寬*高) | mm | 500×240×390 |
